· 제 품 특 징

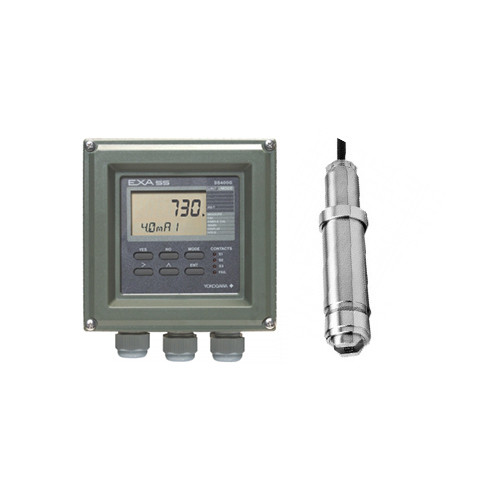

· 모 델 명 : SS400G-SS300G
· 측정범위: 500 - 20000 mg/L
· 서로 다른 두 범위의 출력
· 고장 발생을 포함한 자가 진단 기능
· 제 품 기 능
SS400G Converter
· Wide output ranges, 0-1000 mg/l to 0-20000 mg/l.
· Output in different two ranges.
· Abundant contact outputs.
· Enhanced self-diagnosis functions including failure in light source.
SS300G Sensor
· Easy-to-maintain, lightweight, compact probe-like sensor.
· Virtually no need for replacing light source and photodetector unit.
· Pulse-driven light emission, eliminating effects of disturbing light.
· Arrangement of optical system highly immune to effects of light reflecting from boundary surface.
· Choice of jet cleaning unit.
·Choice of various type of holders according to application needs.
· 적 용 분 야
· 하수처리장, 건설공사현장, 수처리장치, 폭기조, 공장폐수, 양식장, 하천 등
· 제 품 사 양
Measuring object | Concentration of mixed liquor suspended solids (MLSS) in an aeration tank in a sewage or industrial wastewater treatment plant |
Measuring method | Transmitted/scattered light comparison method |
Measuring range | 500 to 20000 mg/l |
Output signal | Two outputs, 4 to 20 mA DC; maximum load resistance: 600 Ω |
Output range | Minimum 0 to 1000 mg/l Maximum 0 to 20000 mg/l |
Contact output | Four outputs |
Contact input | Voltage-free contact for remote range selection and start of cleaning |
Ambient temperature | -10 to 55℃ |
Relative humidity | 10 to 90% RH (non-condensing) |
Construction | Complies with JIS C0920 watertight, IEC IP65 and NEMA 4X standards |
Supply voltage | 100 to 240 V AC, 50/60 Hz, 24 V DC |
Power consumption | 22 VA maximum (AC power) 5 W maximum (DC power) |
Weight | Approx. 2.5 kg |
· 전 극 사 양
Shape | Probe-like Sensor |
Measuring object | Concentration of mixed liquid suspended solid (MLSS) in an aeration tank in a sewage or industrial wastewater treatment plant |
Measuring principle | Scattered/transmitted light comparison method |
Measuring range | 500 to 20000 mg/l |
Temperature of measured object | 0 to 50℃ |
Pressure of measured object | 0 to 200 kPa |
Flow velocity | 1 m/sec maximum |
Cable length | 3, 5, 10, 15 or 20 m |
Material of wetted part or junction | Body; Stainless steel (304SS or equivalent) Window; glass O-ring; nitrile rubber Cable; PVC |
Weight | Approx. 0.5 kg plus N x 0.12 kg, where N is cable length |
Cleaning unit (optional) | Jet cleaning Note: No cleaning unit can be used if the sensor is equipped with a floating ball holder. |
Material of wiper cleaning unit | Nitrile rubber and 304SS (wetted part) |
Material of jet cleaning unit | Polypropylene, polyethylene and 304SS (wetted part) |
Ambient temperature | -10 to 50℃ |
Construction | Complies with JIS rainproof standard |
